Place of Origin: | China |
Brand Name: | Bondi |
Model Number: | AF001 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $190/pc |
Packaging Details: | standard export carton |
Delivery Time: | 20days after get your full payment |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000pcs/week |
Construction: | Box Filter | Medium Material: | Synthetic Fiber |
---|---|---|---|
Dimension: | 610*610*292 | Frame Material: | Gavalnized Steel/ABS |

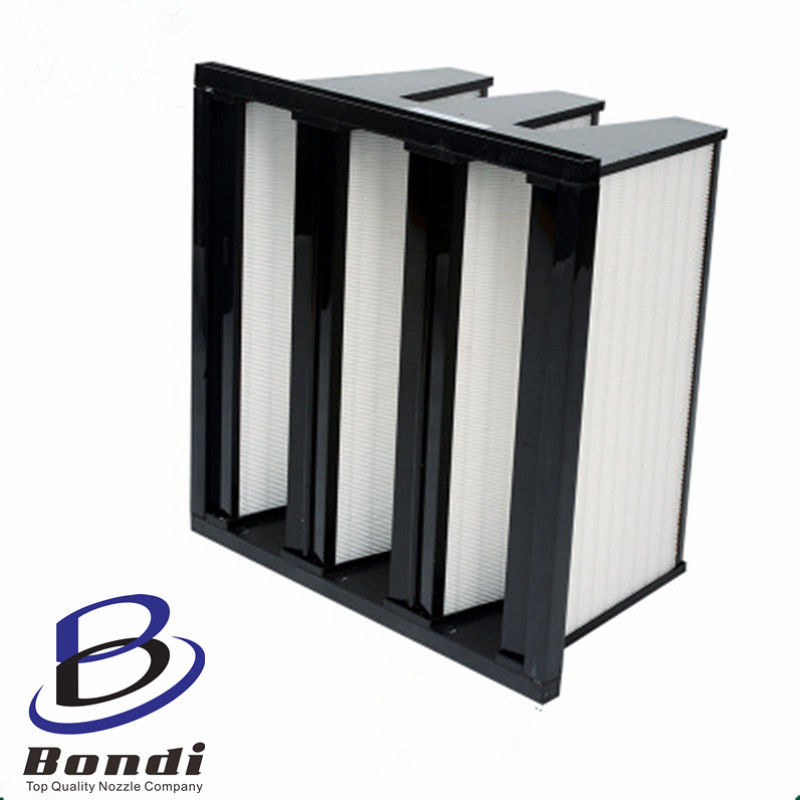

HEPA 610X610X292mm ABS Frame V-bank Type Air Filter,H13 H14 Purifer Grade
Material and Performance
Frame | ABS Plastic/Gl |
Filter Material | Glass fiber |
Partition | Hot melt |
Sealant | Polyurethane adhesive |
Max.temperature | 80℃ |
Max. humidity | 80%RH |
Specification and technical parameters
Model | Nominal Size WxHxD(inch) | Actual Size WxHxD(mm) | Rated AirFlow (m³/h) |
Initial Resistance (pa) |
Efficiency (Colorimetric Method) |
GV | 11-1/2 x 24 x 11-1/2 | 292x610x292 | 1300 | ≤220 | H13/H14 |
GV | 23-3/10 x 11-3/10 x 11-1/2 | 592x287x292 | 1900 | ||
GV | 24 x 24 x 11-1/2 | 610x610x292 | 2700 | ||
GV | 24 x 12 x 11-1/2 | 610x305x292 | 3300 | ||
Special size can be customized according to customer's request |
