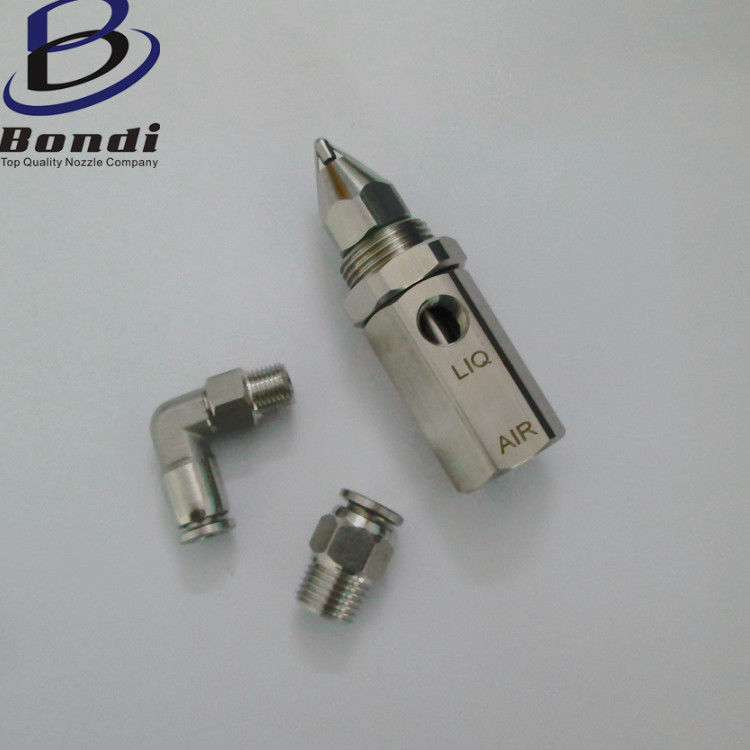

Industrial Air Stomizing Nozzle, Water Mist Nozzle ,Water And Air Mixed Nozzle

Industrial Air Stomizing Nozzle, Water Mist Nozzle ,Water And Air Mixed Nozzle

    • Industrial Air Stomizing Nozzle, Water Mist Nozzle ,Water And Air Mixed Nozzle
    • Industrial Air Stomizing Nozzle, Water Mist Nozzle ,Water And Air Mixed Nozzle
    • Industrial Air Stomizing Nozzle, Water Mist Nozzle ,Water And Air Mixed Nozzle
  • Industrial Air Stomizing Nozzle, Water Mist Nozzle ,Water And Air Mixed Nozzle

    Product Details:

    Place of Origin: China
    Brand Name: Bondi
    Model Number: UNSN003

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: $46/pc
    Packaging Details: standard export box
    Delivery Time: 7days after get your full payment
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 200pcs/week
    Contact Now
    Detailed Product Description
    Material: 304ss Thread: 1/4''
    Spray Angle: 30/60/80degree

    Industrial Air Stomizing Nozzle, Water Mist Nozzle ,Water And Air Mixed Nozzle



    Bondi high quality ultrasonic atomizing nozzles with the ability to shear the water into extremely fine droplets--the so-called "dry fog", with droplets size 1-10 Microns.
    The mechanical ultrasonic nozzle has a carefully designed resonator to produce high frequency wave. Compressed air passes through the nozzle's inner bore through a convergent/divergent section at high velocities and expands into a resonator cavity where it is reflected back to complement and amplify the primary shock wave.
    The result is an intensified field of sonic energy focused between the nozzle body and the resonator cap. Any liquid capable of being pumped into the shock wave is vigorously sheared into fine droplets by the acoustic field. Air bypassing the resonator carries the atomized droplets downstream in a soft plume shaped spray.

    Application:

    Dry fog nozzle have proven to significantly reduce fugitive dust from a variety of material handling points, including conveyor transfer points, trippers, reclaimers, crushers, screens, truck dumps, railcar loading/unloading, ship loaders-unloaders, and ash silo discharge chutes.

    Performance data



    Categories ADG 80° ADG 30° ADG 60°
    Gas pressure 5.2bar 3.5bar 5.2bar
    Water pressure 1.5bar 0.6bar 1.2bar
    Gas consumption 115L/Min 260L/Min 240L/Min
    Water consumption 7.1L/Hr 45L/Hr 20L/Hr
    Atomizing granularity 3-6microns 4-10microns 7-10microns
    Gas filtration demand <40microns <40microns <40microns
    Water filtration demand <50microns <50microns

    <50microns





    Product show

    Industrial Air Stomizing Nozzle, Water Mist Nozzle ,Water And Air Mixed Nozzle

    Industrial Air Stomizing Nozzle, Water Mist Nozzle ,Water And Air Mixed Nozzle

    Industrial Air Stomizing Nozzle, Water Mist Nozzle ,Water And Air Mixed Nozzle
