Home ProductsPapermaking Nozzle

2''BSPT Full cone 120 Degree Spray Angle Spiral Nozzle,316SS Hollow cone Dust Control Spiral nozzle

2''BSPT Full cone 120 Degree Spray Angle Spiral Nozzle,316SS Hollow cone Dust Control Spiral nozzle

    • 2''BSPT Full cone 120 Degree Spray Angle Spiral Nozzle,316SS Hollow cone Dust Control Spiral nozzle
    • 2''BSPT Full cone 120 Degree Spray Angle Spiral Nozzle,316SS Hollow cone Dust Control Spiral nozzle
    • 2''BSPT Full cone 120 Degree Spray Angle Spiral Nozzle,316SS Hollow cone Dust Control Spiral nozzle
  • 2''BSPT Full cone 120 Degree Spray Angle Spiral Nozzle,316SS Hollow cone Dust Control Spiral nozzle

    Product Details:

    Place of Origin: China
    Brand Name: Bondi
    Model Number: SPSN0013

    Payment & Shipping Terms:

    Minimum Order Quantity: 20pcs
    Price: $2.5/pc
    Packaging Details: standard export box
    Delivery Time: 7days after get your full payment
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 2000pcs/week
    Contact Now
    Detailed Product Description
    Material: 304ss/316ss Thread: 1/4'' 3/8'' 1/2'' 3/4'' 1''BSPT
    Spray Pattern: Full Cone/hollow Cone Standard Working Pressure: 3bar
    Spray Angle: 60/90/120degree

    2''BSPT Full cone 120 Degree Spray Angle Spiral Nozzle,316SS Hollow cone Dust Control Spiral nozzle



    Product Name Spiral Spray Nozzle
    Material 316SS/304SS/PP
    Spray angle 120degree/90/60
    Thread size 1/8'' 1/4'' 3/8'' 1/2'' 3/4'' 1''
    Application Dust control

    The whirl jet nozzles produce a solid cone spray pattern or hollow cone spray pattern. The liquid flow rate ranged from 5.5 liters per minute to 4140 liters per minute at 3 bar.These compact nozzles permit maximum liquid through for a given pipe size,and the free passage design minimizes clogging.These nozzles can be installed on and replaced from most pipe systems,They are available in brass,316 stainless steel and TEFLON for 1/4 to 2 inch inlet connection sizes.Other materials are available in case of application in some special fields.



    Features
    High energy efficiency

    Clog-resistant performance
    One-piece/no internal parts
    Male thread/ Femal thread available
    Inlet Size:1/4",3/8",1/2",3/4",1",1-1/4",1-1/2",2",3"



    Common Application

    1.Power plant, burning coal project desulfurization and denitration.
    2. Air purification, air cooling and defoaming.
    3. Evaporation, cooling, and dust controlling.
    4. Wetting air by dust removing spray--environment protect.
    5. Pre-treatment requires for non-blocking spray.
    6. Air cooling.
    7. Exhaust gas cleaning.
    8. Fire fighting, fireproof.

    9. Steel and iron/ petrochemical industry dustproof application





    Performance data

    Performance data for sprialnozzle.jpg

    Product show

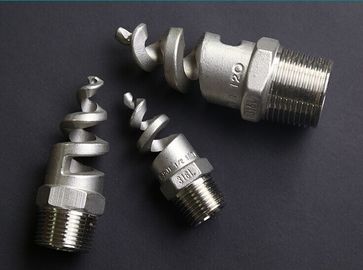

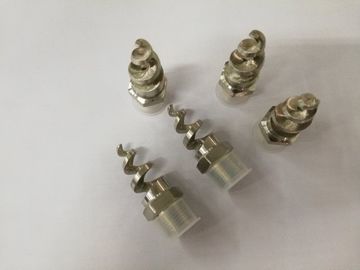

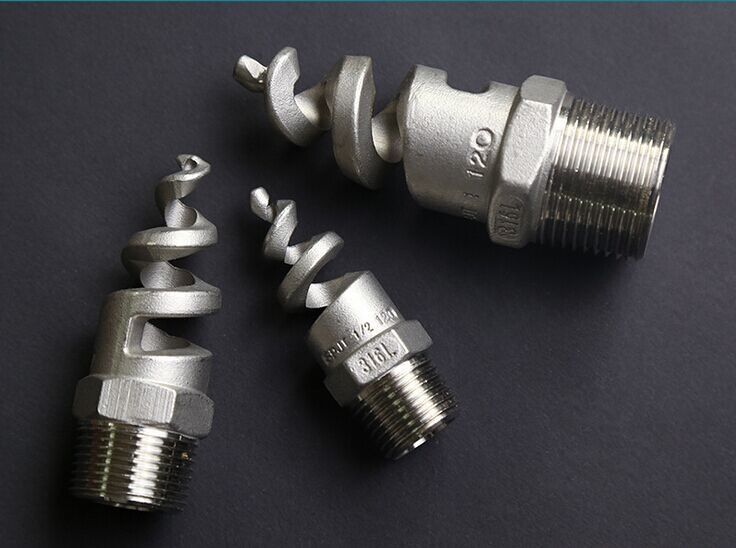

    316L nozzle1
