High pressure fogging oil burner nozzle,brass fuel oil spray nozzle

High pressure fogging oil burner nozzle,brass fuel oil spray nozzle

    • High pressure fogging oil burner nozzle,brass fuel oil spray nozzle
    • High pressure fogging oil burner nozzle,brass fuel oil spray nozzle
    • High pressure fogging oil burner nozzle,brass fuel oil spray nozzle
    • High pressure fogging oil burner nozzle,brass fuel oil spray nozzle
    • High pressure fogging oil burner nozzle,brass fuel oil spray nozzle
    • High pressure fogging oil burner nozzle,brass fuel oil spray nozzle
    • High pressure fogging oil burner nozzle,brass fuel oil spray nozzle
  • High pressure fogging oil burner nozzle,brass fuel oil spray nozzle

    Product Details:

    Place of Origin: China
    Brand Name: Bondi
    Certification: ISO9001-2008
    Model Number: OD004

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: $5-$9
    Packaging Details: Inner packing-Poly bags Outer packing-Export cartons
    Delivery Time: 10days after get the deposit
    Payment Terms: TT,Western Union
    Supply Ability: 10000pcs/week
    Contact Now
    Detailed Product Description

    Products Information

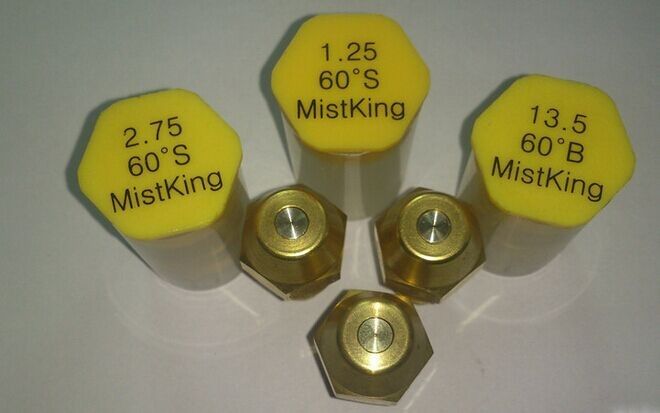

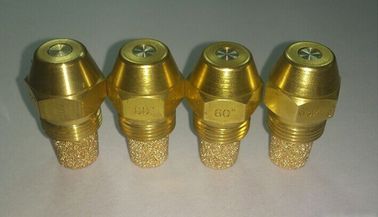

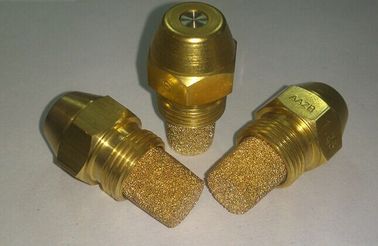

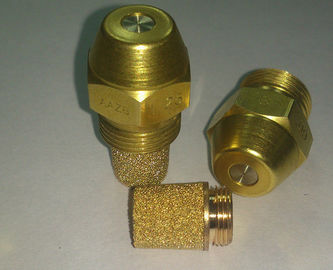

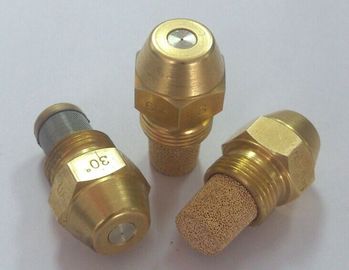

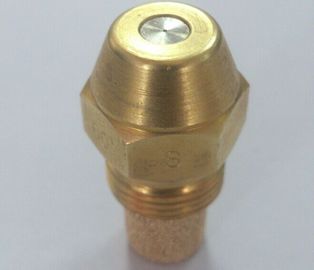

    OD series oil burner nozzle

    OD series oil burner nozzle used for atomizing burning.The installation of its' ignition electrode become convenient after several times improvement of the outside size and oil filter.

    According to the US standard, oil burner nozzle have 4 different degree: 30. 45. 60.80.

    and the spray pattern can be divided in to S(solid cone), H(hollow cone),B(semi-solid cone)

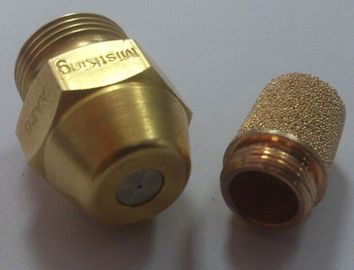

    Mistking oil burner nozzle use the different oil filter according to the different capacity:

    A: capacity from 0.30-0.35 usgal/h use 30micro melting cooper filter.

    B: capacity from 0.40-0.85 usgal/h use 45micro melting cooper filter.

    C: capacity from 1.00-1.75 usgal/h use 75micro melting cooper filter.

    D: capacity from 2.00-11.00 usgal/h use 145micro melting cooper filter.

    E: capacity above 12.00 usgal/h do not use filter.



    GPH (USgal/h)

    Spray angle/ Spray Pattern

    Rate of flow(70bar)  Kg/H

    30°

    45°

    60°

    80°

    0.50

    H   S

    H  S

    H   S

    H   S

    1.87

    0.55

    H   S

    H  S

    H   S

    H   S

    2.11

    0.60

    H   S

    H  S

    H   S

    H   S

    2.37

    0.65

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    2.67

    0.70

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    2.94

    0.85

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    3.31

    1.00

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    3.72

    1.10

    H   S

    H   S

    H   S

    H   S

    4.24

    1.20

    H   S

    H   S

    H   S

    H   S

    4.45

    1.25

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    4.71

    1.35

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    5.17

    1.50

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    5.84

    1.65

    H  S

    H  S

    H  S

    H  S

    6.08

    1.75

    H  S

    H  S

    H  S

    H  S

    6.55

    2.00

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    7.42

    2.25

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    8.35

    2.50

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    9.29

    2.75

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    10.5

    3.00

    H  S   B

    H  S   B

    H  S   B

    H  S   B

    11.6

    3.50

    S

    S

    S

    S

    12.9

    3.75

    B

    S   B

    S  B

    S  B

    13.8

    4.00



    S   B

    S   B

    S   B

    14.2

    4.50



    S   B

    S   B

    S   B

    16.1

    5.00



    S   B

    S   B

    S   B

    18.5

    5.50



    S   B

    S   B

    S   B

    20.9

    6.00



    S   B

    S   B

    S   B

    23.4

    6.50



    B

    B

    B

    26.1

    7.00





    S



    27.9

    7.50



    B

    B

    B

    29.8

    8.00





    S



    31.5

    8.50



    B

    B

    B

    33.1

    9.00





    S



    35.4

    10.00



    B

    B

    B

    37.7

    11.00



    B

    B

    B

    42.5

    12.00



    B

    B

    B

    47.7

    13.50



    B

    B

    B

    54.3

    15.00



    B

    B

    B

    60.4

    17.00





    B

    B

    67.4

    19.50





    B

    B

    76.2

    22.00



    B

    B

    B

    86.4

    25.00





    B

    B

    96.7

    28.00





    B

    B

    109.5

    31.00



    B

    B

    B

    122.5

    35.00



    B





    133.5

     High pressure fogging oil burner nozzle,brass fuel oil spray nozzle

    High pressure fogging oil burner nozzle,brass fuel oil spray nozzle

    High pressure fogging oil burner nozzle,brass fuel oil spray nozzle

    Oil burner nozzle can be customized according to DANFOSS,DELAVAN,STEINEN. The Brass body and stainless steel metering parts permit machining to close tolerances for precision and consistently high performance. Brass transmits heat fast from the nozzle face to reduce the possibility of varnish and oil residue buildup. Stainless steel provides that extra durability for metering parts where wear is a factor. OEM service we supply!
